SKF 22320EJA/VA405 Self-aligning roller bearing
Also known as : 22320EJA/VA405, 22320-E1
- Inside Diameter: 100 mm
- Outside Diameter: 215 mm
- Width: 73 mm
- Basic dynamic load rating: 847 kN
- Basic static load rating: 950 kN
SKF 22320EJA/VA405

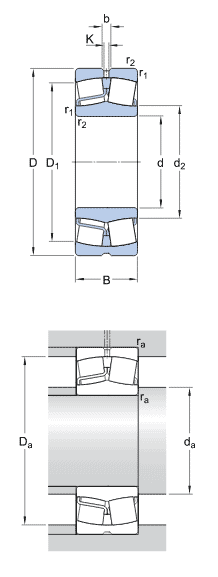

SKF 22320EJA/VA405 details
| model | 22320EJA/VA405 |
|---|---|
| d | 100 mm |
| D | 215 mm |
| B | 73 mm |
| d2 | 130 mm |
| D1 | 184 mm |
| b | 11.1 mm |
| K | 6 mm |
| r1,2 min. | 3 mm |
| da min | 114 mm |
| Da max | 201 mm |
| ra max | 2.5 mm |
| C | 847 kN, Basic dynamic load rating |
| C0 | 950 kN, Basic static load rating |
| Pu | 88 kN, Fatigue load limit |
| Reference speed | 2400 r/min |
| Limiting speed | 3000 r/min |
| e | 0.33, Calculation factor |
| Y1 | 2, Calculation factor |
| Y2 | 3, Calculation factor |
| Y0 | 2, Calculation factor |
| Mass | 13.5 kg |
SKF 22320EJA/VA405 bearing cross reference
24068EMD1
100 mmx 215 mmx 73 mm
232/560B
100 mmx 215 mmx 73 mm
241/560B
100 mmx 215 mmx 73 mm
231/560B
100 mmx 215 mmx 73 mm
23992
100 mmx 215 mmx 73 mm
23996
100 mmx 215 mmx 73 mm
240/560B
100 mmx 215 mmx 73 mm
232/530B
100 mmx 215 mmx 73 mm
23092B
100 mmx 215 mmx 73 mm
23096B
100 mmx 215 mmx 73 mm
230/560B
100 mmx 215 mmx 73 mm
