NSK 23238CE4 Self-aligning roller bearing
Also known as : 23238CE4
- Inside Diameter: 190 mm
- Outside Diameter: 340 mm
- Width: 120 mm
- Basic dynamic load rating: 1440 kN
- Basic static load rating: 2350 kN
NSK 23238CE4

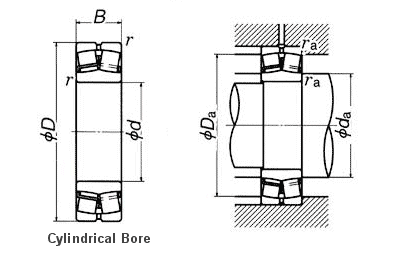

NSK 23238CE4 details
| Bearing number | 23238CE4 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 190 mm |
| D | 340 mm |
| B | 120.0 mm |
| rmin. | 4.0 mm |
| Cr |
1440000 N 147000 kgf |
| C0r |
2350000 N 240000 kgf |
| Limiting speeds | 800 min-1 (Grease) |
| Limiting speeds | 1100 min-1 (Oil) |
| da min | 208 mm |
| da max | 222.000 mm |
| Da max | 322 mm |
| Da min | 288 mm |
| ra | 3.0 mm |
| Constant | 0.35 |
| Y2 | 2.9 Axial Load Factors |
| Y3 | 1.9 Axial Load Factors |
| Y0 | 1.9 Axial Load Factors |
| Mass | 47.60 kg (approx.) |
