FAG 222S.615 Self-aligning roller bearing
Also known as : 222S.615
- Inside Diameter: 176.213 mm
- Outside Diameter: 340 mm
- Width: 92 mm
- Basic dynamic load rating: 1140 kN
- Basic static load rating: 1640 kN
FAG 222S.615
FAG 222S.615 details

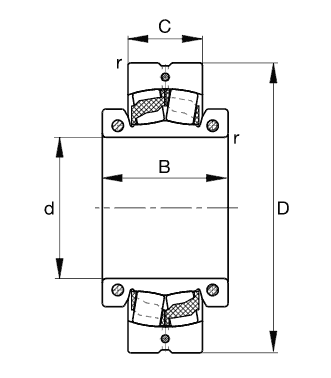

| Number | 222S.615 | |
|---|---|---|
| Type |
Split spherical roller bearings split spherical roller bearings, with inch size bearing bore |
|
| d | 176,213mm | |
| d | 6 15/16inch | |
| D | 340mm | |
| C | 92mm | |
| B | 142mm | |
| rmin | 4mm | |
| m | 44,2kg | Mass |
| Cr | 1140000N | Basic dynamic load rating, radial |
| C0r | 1640000N | Basic static load rating, radial |
| Cur | 115000N | Fatigue limit load, radial |
| nG | 8601/min | Limiting speed |
| e | 0,25 | |
| Y1 | 2,71 | |
| Y2 | 4,04 | |
| Y0 | 2,65 | |
| Fa max | 22200N | Permissible axial load, for inner ring without axial abutment |
| Mi | 69Nm | Tightening torque per clamping screw |
| Ma | 35Nm | Tightening torque per clamping screw |
| 22238K | Designation, spherical roller bearing, unsplit | |
| H3138X615 | Designation, adapter sleeve | |
| SNW38.615 | Designation, adapter sleeve, US design | |
| SAF538 | Designation, plummer block housing, US design |
