SKF 22330CC/W33 Self-aligning roller bearing
Also known as : 22330CC/W33, 22330-E1
- Inside Diameter: 150 mm
- Outside Diameter: 320 mm
- Width: 108 mm
- Basic dynamic load rating: 1539 kN
- Basic static load rating: 1760 kN
SKF 22330CC/W33

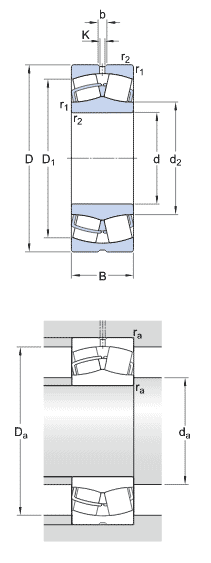

SKF 22330CC/W33 details
| model | 22330CC/W33 |
|---|---|
| d | 150 mm |
| D | 320 mm |
| B | 108 mm |
| d2 | 188 mm |
| D1 | 266 mm |
| b | 16.7 mm |
| K | 9 mm |
| r1,2 min. | 4 mm |
| da min | 167 mm |
| Da max | 303 mm |
| ra max | 3 mm |
| C | 1539 kN, Basic dynamic load rating |
| C0 | 1760 kN, Basic static load rating |
| Pu | 146 kN, Fatigue load limit |
| Reference speed | 1600 r/min |
| Limiting speed | 2000 r/min |
| e | 0.35, Calculation factor |
| Y1 | 1.9, Calculation factor |
| Y2 | 2.9, Calculation factor |
| Y0 | 1.8, Calculation factor |
| Mass | 43.5 kg |
