FAG 23948-MB-C3 Self-aligning roller bearing
Also known as : 23948EMD1, 23948CAE4, 23948CC/W33
- Inside Diameter: 240 mm
- Outside Diameter: 320 mm
- Width: 60 mm
- Basic dynamic load rating: 640 kN
- Basic static load rating: 1370 kN
FAG 23948-MB-C3

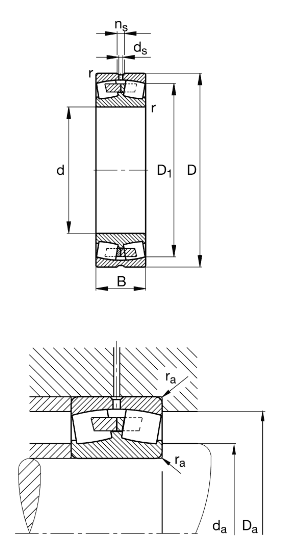

FAG 23948-MB-C3 details
| Number | 23948-MB-C3 | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 240 mm | |
| D | 320 mm | |
| B | 60 mm | |
| D1 | 297.8 mm | |
| Da max | 309.8 mm | |
| da min | 250.2 mm | |
| ds | 6.3 mm | |
| ns | 12.2 mm | |
| ra max | 2.1 mm | |
| rmin | 2.1 mm | |
| m | 13.39 kg | Mass |
| Cr | 640000 N | Basic dynamic load rating, radial |
| C0r | 1370000 N | Basic static load rating, radial |
| Cur | 96000 N | Fatigue limit load, radial |
| nG | 2440 1/min | Limiting speed |
| nB | 1310 1/min | Reference speed |
| e | 0.17 | |
| Y1 | 4.05 | |
| Y2 | 6.04 | |
| Y0 | 3.96 |
