SKF 22222E Self-aligning roller bearing
Also known as : 22222E, 22222-E1
- Inside Diameter: 110 mm
- Outside Diameter: 200 mm
- Width: 53 mm
- Basic dynamic load rating: 572 kN
- Basic static load rating: 640 kN
SKF 22222E

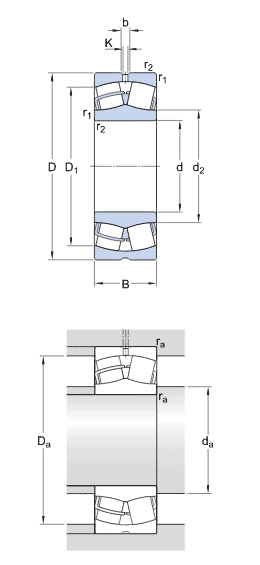

SKF 22222E details
| model | 22222E |
|---|---|
| d | 110 mm |
| D | 200 mm |
| B | 53 mm |
| d2 | 130 mm |
| D1 | 178 mm |
| b | 8.3 mm |
| K | 4.5 mm |
| r1,2 min. | 2.1 mm |
| da min | 122 mm |
| Da max | 188 mm |
| ra max | 2 mm |
| C | 572 kN, Basic dynamic load rating |
| C0 | 640 kN, Basic static load rating |
| Pu | 63 kN, Fatigue load limit |
| Reference speed | 3000 r/min |
| Limiting speed | 4000 r/min |
| e | 0.25, Calculation factor |
| Y1 | 2.7, Calculation factor |
| Y2 | 4, Calculation factor |
| Y0 | 2.5, Calculation factor |
| Mass | 7 kg |
SKF 22222E bearing cross reference
24068EMD1
110 mmx 200 mmx 53 mm
232/560B
110 mmx 200 mmx 53 mm
241/560B
110 mmx 200 mmx 53 mm
231/560B
110 mmx 200 mmx 53 mm
23992
110 mmx 200 mmx 53 mm
23996
110 mmx 200 mmx 53 mm
240/560B
110 mmx 200 mmx 53 mm
232/530B
110 mmx 200 mmx 53 mm
23092B
110 mmx 200 mmx 53 mm
23096B
110 mmx 200 mmx 53 mm
230/560B
110 mmx 200 mmx 53 mm
