INA NX17-XL Needle bearing
Also known as : NX17-XL
- Inside Diameter: 17 mm
- Outside Diameter: 26 mm
- Width: 28 mm
- Basic dynamic load rating: 5.8 kN
- Basic static load rating: 11.5 kN
INA NX17-XL
INA NX17-XL details

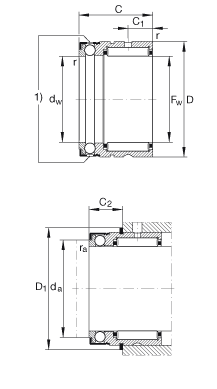

| Number | NX17-XL | |
|---|---|---|
| Type | Needle roller bearings Needle roller/axial ball bearings | |
| Fw | 17 mm | |
| D | 26 mm | |
| C | 28 mm | Tolerance: 0/-0,25 |
| 1) | Holes for lubricating oil | |
| 2) | Mounting dimensions Snap ring in outer ring | |
| C1 | 8 mm | |
| C2 | 12,2 mm | |
| D1 | 28,5 mm | |
| da | 21 mm | |
| dw | 17 mm | Tolerance: E8 |
| ra max | 0,3 mm | |
| rmin | 0,3 mm | |
| m | 53 g | Mass |
| Cr | 13500 N | Basic dynamic load rating, radial |
| C0r | 15000 N | Basic static load rating, radial |
| Ca | 5800 N | Basic dynamic load rating, axial |
| C0a | 11500 N | Basic static load rating, axial |
| Cur | 2750 N | Fatigue limit load, radial |
| Cua | 510 N | Fatigue limit load, axial |
| nG | 7500 1/min | Limiting speed |
| IR14X17X17-XL | Suitable inner ring | |
| WR26, SW26 | Suitable snap rings WR and SW |
