IKO TRI203820

IKO TRI203820 Needle bearing

Also known as : TRI203820

Inside Diameter: 20 mm
Outside Diameter: 38 mm
Width: 20 mm
Basic dynamic load rating: 28.9 kN
Basic static load rating: 35 kN

IKO TRI203820

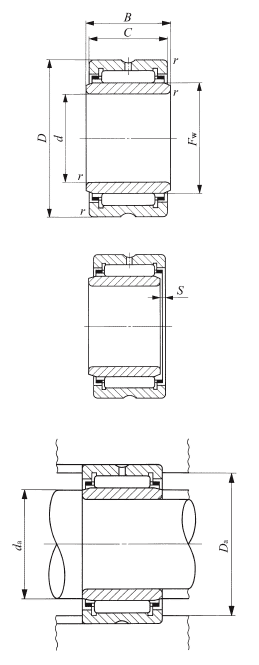

IKO TRI203820 details

model	TRI203820
d	20 mm
D	38 mm
C	20 mm
B	20.5 mm
F_w	25 mm
r_{s min}	0.3 mm
S	0.3 mm
d_{a min}	22 mm
d_{a max}	24 mm
D_{a max}	36 mm
C	28900 N, Basic dynamic load rating
C₀	35000 N, Basic static load rating
Allowable rotational speed	16000 rpm
Assembled inner ring	LRT202520
Mass	99 g (approx.)

IKO TRI203820 bearing cross reference

YTL 2526
20 mmx 38 mmx20 mm

YT 2515
20 mmx 38 mmx20 mm

YT 243216
20 mmx 38 mmx20 mm

YT 2428
20 mmx 38 mmx20 mm

YT 223016
20 mmx 38 mmx20 mm

YT 2116
20 mmx 38 mmx20 mm

YT 2025
20 mmx 38 mmx20 mm

YT 1715
20 mmx 38 mmx20 mm

TAMW 7050
20 mmx 38 mmx20 mm

TAM 7040
20 mmx 38 mmx20 mm

TAM 7030
20 mmx 38 mmx20 mm

TAMW 6550
20 mmx 38 mmx20 mm
