IKO TRI325230

IKO TRI325230 Needle bearing

Also known as : TRI325230

Inside Diameter: 32 mm
Outside Diameter: 52 mm
Width: 30 mm
Basic dynamic load rating: 50.8 kN
Basic static load rating: 81.1 kN

IKO TRI325230

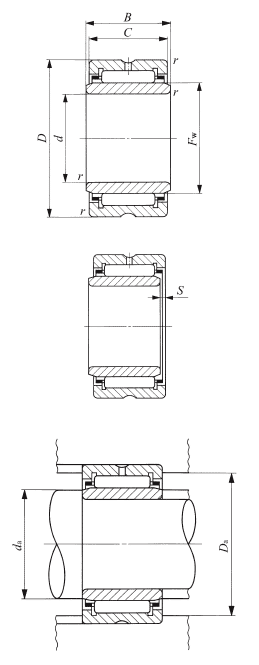

IKO TRI325230 details

model	TRI325230
d	32 mm
D	52 mm
C	30 mm
B	30.5 mm
F_w	38 mm
r_{s min}	0.6 mm
S	0.5 mm
d_{a min}	36 mm
d_{a max}	37 mm
D_{a max}	48 mm
C	50800 N, Basic dynamic load rating
C₀	81100 N, Basic static load rating
Allowable rotational speed	11000 rpm
Assembled inner ring	LRT323830
Mass	245 g (approx.)

IKO TRI325230 bearing cross reference

YTL 2526
32 mmx 52 mmx30 mm

YT 2515
32 mmx 52 mmx30 mm

YT 243216
32 mmx 52 mmx30 mm

YT 2428
32 mmx 52 mmx30 mm

YT 223016
32 mmx 52 mmx30 mm

YT 2116
32 mmx 52 mmx30 mm

YT 2025
32 mmx 52 mmx30 mm

YT 1715
32 mmx 52 mmx30 mm

TAMW 7050
32 mmx 52 mmx30 mm

TAM 7040
32 mmx 52 mmx30 mm

TAM 7030
32 mmx 52 mmx30 mm

TAMW 6550
32 mmx 52 mmx30 mm
