IKO TAFI405520

IKO TAFI405520 Needle bearing

Also known as : TAFI405520, NKI40/20

Inside Diameter: 40 mm
Outside Diameter: 55 mm
Width: 20 mm
Basic dynamic load rating: 31 kN
Basic static load rating: 60.2 kN

IKO TAFI405520

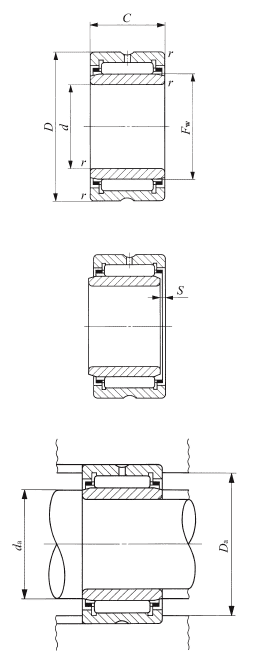

IKO TAFI405520 details

model	TAFI405520
d	40 mm
D	55 mm
C	20 mm
F_w	45 mm
r_{s min}	0.3 mm
S	0.3 mm
d_{a min}	42 mm
d_{a max}	44 mm
D_{a max}	53 mm
C	31000 N, Basic dynamic load rating
C₀	60200 N, Basic static load rating
Allowable rotational speed	9000 rpm
Assembled inner ring	LRT404520
Mass	143 g (approx.)
