IKO TAFI385320

IKO TAFI385320 Needle bearing

Also known as : TAFI385320, NKI38/20

Inside Diameter: 38 mm
Outside Diameter: 53 mm
Width: 20 mm
Basic dynamic load rating: 30.5 kN
Basic static load rating: 58.2 kN

IKO TAFI385320

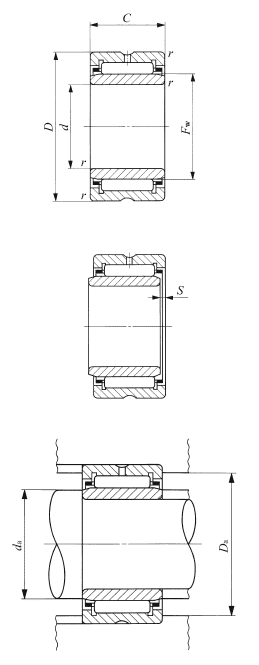

IKO TAFI385320 details

model	TAFI385320
d	38 mm
D	53 mm
C	20 mm
F_w	43 mm
r_{s min}	0.3 mm
S	0.3 mm
d_{a min}	40 mm
d_{a max}	42 mm
D_{a max}	51 mm
C	30500 N, Basic dynamic load rating
C₀	58200 N, Basic static load rating
Allowable rotational speed	9500 rpm
Assembled inner ring	LRT384320
Mass	136 g (approx.)

IKO TAFI385320 bearing cross reference

YTL 2526
38 mmx 53 mmx20 mm

YT 2515
38 mmx 53 mmx20 mm

YT 243216
38 mmx 53 mmx20 mm

YT 2428
38 mmx 53 mmx20 mm

YT 223016
38 mmx 53 mmx20 mm

YT 2116
38 mmx 53 mmx20 mm

YT 2025
38 mmx 53 mmx20 mm

YT 1715
38 mmx 53 mmx20 mm

TAMW 7050
38 mmx 53 mmx20 mm

TAM 7040
38 mmx 53 mmx20 mm

TAM 7030
38 mmx 53 mmx20 mm

TAMW 6550
38 mmx 53 mmx20 mm
