IKO RNAFW304026

IKO RNAFW304026 Needle bearing

Also known as : RNAFW304026, RNAO30x40x26

Inside Diameter: 30 mm
Outside Diameter: 40 mm
Width: 26 mm
Basic dynamic load rating: 24.2 kN
Basic static load rating: 43.4 kN

IKO RNAFW304026

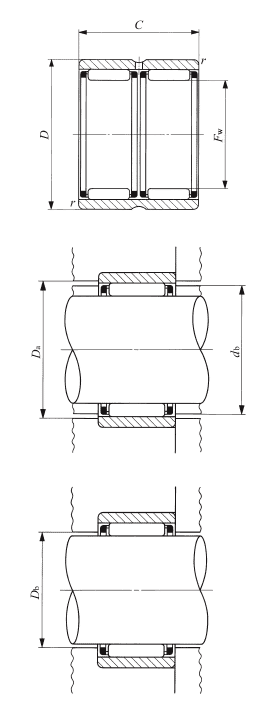

IKO RNAFW304026 details

model	RNAFW304026
F_w	30 mm
D	40 mm
C	26 mm
r_{s min}	0.3 mm
d_b	34.5 mm
D_{a max}	38 mm
D_b	30.6 mm
C	24200 N, Basic dynamic load rating
C₀	43400 N, Basic static load rating
Mass	90.5 g (approx.)

IKO RNAFW304026 bearing cross reference

YTL 2526
30 mmx 40 mmx26 mm

YT 2515
30 mmx 40 mmx26 mm

YT 243216
30 mmx 40 mmx26 mm

YT 2428
30 mmx 40 mmx26 mm

YT 223016
30 mmx 40 mmx26 mm

YT 2116
30 mmx 40 mmx26 mm

YT 2025
30 mmx 40 mmx26 mm

YT 1715
30 mmx 40 mmx26 mm

TAMW 7050
30 mmx 40 mmx26 mm

TAM 7040
30 mmx 40 mmx26 mm

TAM 7030
30 mmx 40 mmx26 mm

TAMW 6550
30 mmx 40 mmx26 mm
