IKO RNAF284016

IKO RNAF284016 Needle bearing

Also known as : RNAF284016, RNAO28x40x16

Inside Diameter: 28 mm
Outside Diameter: 40 mm
Width: 16 mm
Basic dynamic load rating: 20.1 kN
Basic static load rating: 26.5 kN

IKO RNAF284016

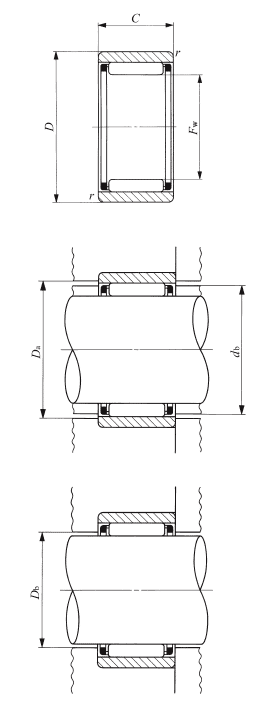

IKO RNAF284016 details

model	RNAF284016
F_w	28 mm
D	40 mm
C	16 mm
r_{s min}	0.3 mm
d_b	33.4 mm
D_{a max}	38 mm
D_b	28.6 mm
C	20100 N, Basic dynamic load rating
C₀	26500 N, Basic static load rating
Mass	62.5 g (approx.)

IKO RNAF284016 bearing cross reference

YTL 2526
28 mmx 40 mmx16 mm

YT 2515
28 mmx 40 mmx16 mm

YT 243216
28 mmx 40 mmx16 mm

YT 2428
28 mmx 40 mmx16 mm

YT 223016
28 mmx 40 mmx16 mm

YT 2116
28 mmx 40 mmx16 mm

YT 2025
28 mmx 40 mmx16 mm

YT 1715
28 mmx 40 mmx16 mm

TAMW 7050
28 mmx 40 mmx16 mm

TAM 7040
28 mmx 40 mmx16 mm

TAM 7030
28 mmx 40 mmx16 mm

TAMW 6550
28 mmx 40 mmx16 mm
