IKO RNA6916

IKO RNA6916 Needle bearing

Also known as : RNA6916

Inside Diameter: 90 mm
Outside Diameter: 110 mm
Width: 54 mm
Basic dynamic load rating: 143 kN
Basic static load rating: 351 kN

IKO RNA6916

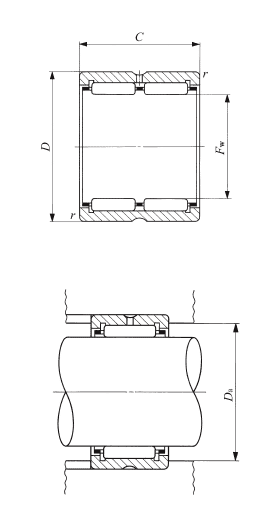

IKO RNA6916 details

model	RNA6916
F_w	90 mm
D	110 mm
C	54 mm
r_{s min}	1 mm
D_{a max}	105 mm
C	143000 N, Basic dynamic load rating
C₀	351000 N, Basic static load rating
Allowable rotational speed	4500 rpm
Mass	1010 g (approx.)

IKO RNA6916 bearing cross reference

YTL 2526
90 mmx 110 mmx54 mm

YT 2515
90 mmx 110 mmx54 mm

YT 243216
90 mmx 110 mmx54 mm

YT 2428
90 mmx 110 mmx54 mm

YT 223016
90 mmx 110 mmx54 mm

YT 2116
90 mmx 110 mmx54 mm

YT 2025
90 mmx 110 mmx54 mm

YT 1715
90 mmx 110 mmx54 mm

TAMW 7050
90 mmx 110 mmx54 mm

TAM 7040
90 mmx 110 mmx54 mm

TAM 7030
90 mmx 110 mmx54 mm

TAMW 6550
90 mmx 110 mmx54 mm
