IKO GTRI203820

IKO GTRI203820 Needle bearing

Also known as : GTRI203820

Inside Diameter: 20 mm
Outside Diameter: 38 mm
Width: 20 mm
Basic dynamic load rating: 33.3 kN
Basic static load rating: 46.5 kN

IKO GTRI203820

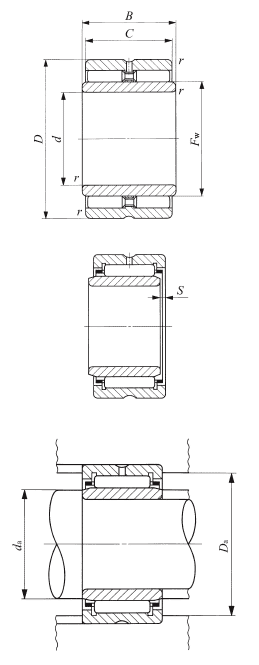

IKO GTRI203820 details

model	GTRI203820
d	20 mm
D	38 mm
C	20 mm
B	20.5 mm
F_w	25 mm
r_{s min}	0.3 mm
S	mm
d_{a min}	22 mm
d_{a max}	24 mm
D_{a max}	36 mm
C	33300 N, Basic dynamic load rating
C₀	46500 N, Basic static load rating
Allowable rotational speed	6000 rpm
Assembled inner ring	LRTZ202520
Mass	110 g (approx.)

IKO GTRI203820 bearing cross reference

YTL 2526
20 mmx 38 mmx20 mm

YT 2515
20 mmx 38 mmx20 mm

YT 243216
20 mmx 38 mmx20 mm

YT 2428
20 mmx 38 mmx20 mm

YT 223016
20 mmx 38 mmx20 mm

YT 2116
20 mmx 38 mmx20 mm

YT 2025
20 mmx 38 mmx20 mm

YT 1715
20 mmx 38 mmx20 mm

TAMW 7050
20 mmx 38 mmx20 mm

TAM 7040
20 mmx 38 mmx20 mm

TAM 7030
20 mmx 38 mmx20 mm

TAMW 6550
20 mmx 38 mmx20 mm
