IKO NA6918UU Needle bearing
Also known as : NA6918UU
- Inside Diameter: 90 mm
- Outside Diameter: 125 mm
- Width: 63 mm
- Basic dynamic load rating: 172 kN
- Basic static load rating: 471 kN
IKO NA6918UU

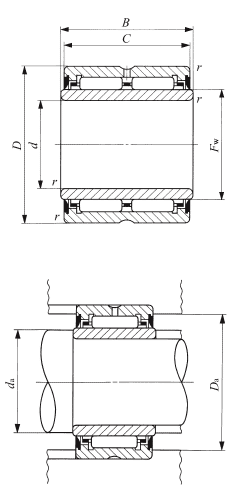

IKO NA6918UU details
| model | NA6918UU |
|---|---|
| d | 90 mm |
| D | 125 mm |
| C | 63 mm |
| B | 64 mm |
| Fw | 105 mm |
| rs min | 1.1 mm |
| da min | 96.5 mm |
| da max | 103 mm |
| Da max | 118.5 mm |
| C | 172000 N, Basic dynamic load rating |
| C0 | 471000 N, Basic static load rating |
| Allowable rotational speed | 1800 rpm |
| Assembled inner ring | LRTZ9010564 |
| Mass | 2480 g (approx.) |
IKO NA6918UU bearing cross reference
YTL 2526
90 mmx 125 mmx63 mm
YT 2515
90 mmx 125 mmx63 mm
YT 243216
90 mmx 125 mmx63 mm
YT 2428
90 mmx 125 mmx63 mm
YT 223016
90 mmx 125 mmx63 mm
YT 2116
90 mmx 125 mmx63 mm
YT 2025
90 mmx 125 mmx63 mm
YT 1715
90 mmx 125 mmx63 mm
TAMW 7050
90 mmx 125 mmx63 mm
TAM 7040
90 mmx 125 mmx63 mm
TAM 7030
90 mmx 125 mmx63 mm
