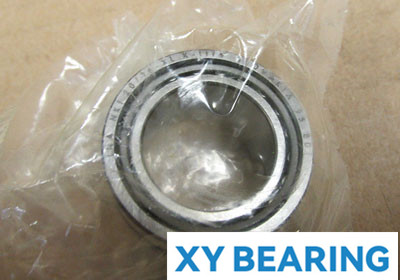

INA NKI10/16-XL Needle bearing
Also known as : NKI10/16-XL
- Inside Diameter: 10 mm
- Outside Diameter: 22 mm
- Width: 16 mm
- Basic dynamic load rating: 11.4 kN
- Basic static load rating: 11.5 kN
INA NKI10/16-XL
INA NKI10/16-XL details
| d | 10 mm | |
|---|---|---|
| D | 22 mm | |
| B | 16 mm | |
| F | 14 mm | |
| rmin | 0,3 mm | |
| s | 0,5 mm | Axial displacement |
| m | 29,4 g | Mass |
| Cr | 11400 N | Basic dynamic load rating, radial |
| C0r | 11500 N | Basic static load rating, radial |
| Cur | 2100 N | Fatigue limit load, radial |
| nG | 24600 1/min | Limiting speed |
| nB | 16400 1/min | Reference speed |
INA NKI10/16-XL bearing cross reference
YTL 2526
10 mmx 22 mmx16 mm
YT 2515
10 mmx 22 mmx16 mm
YT 243216
10 mmx 22 mmx16 mm
YT 2428
10 mmx 22 mmx16 mm
YT 223016
10 mmx 22 mmx16 mm
YT 2116
10 mmx 22 mmx16 mm
YT 2025
10 mmx 22 mmx16 mm
YT 1715
10 mmx 22 mmx16 mm
TAMW 7050
10 mmx 22 mmx16 mm
TAM 7040
10 mmx 22 mmx16 mm
TAM 7030
10 mmx 22 mmx16 mm
