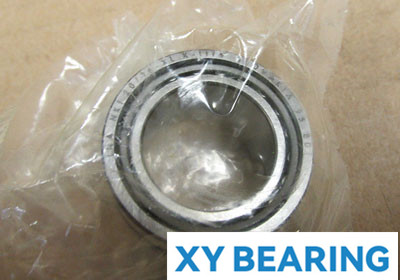

INA NKI5/12-TV-XL Needle bearing
Also known as : NKI5/12-TV-XL
- Inside Diameter: 5 mm
- Outside Diameter: 15 mm
- Width: 12 mm
- Basic dynamic load rating: 4.45 kN
- Basic static load rating: 4.1 kN
INA NKI5/12-TV-XL
INA NKI5/12-TV-XL details
| d | 5 mm | |
|---|---|---|
| D | 15 mm | |
| B | 12 mm | |
| F | 8 mm | |
| rmin | 0,3 mm | |
| s | 1,5 mm | Axial displacement |
| m | 11,5 g | Mass |
| Cr | 4450 N | Basic dynamic load rating, radial |
| C0r | 4100 N | Basic static load rating, radial |
| Cur | 690 N | Fatigue limit load, radial |
| nG | 32500 1/min | Limiting speed |
| nB | 32500 1/min | Reference speed |
| With closing rings, without lubrication hole and without lubrication groove. |
INA NKI5/12-TV-XL bearing cross reference
YTL 2526
5 mmx 15 mmx12 mm
YT 2515
5 mmx 15 mmx12 mm
YT 243216
5 mmx 15 mmx12 mm
YT 2428
5 mmx 15 mmx12 mm
YT 223016
5 mmx 15 mmx12 mm
YT 2116
5 mmx 15 mmx12 mm
YT 2025
5 mmx 15 mmx12 mm
YT 1715
5 mmx 15 mmx12 mm
TAMW 7050
5 mmx 15 mmx12 mm
TAM 7040
5 mmx 15 mmx12 mm
TAM 7030
5 mmx 15 mmx12 mm
