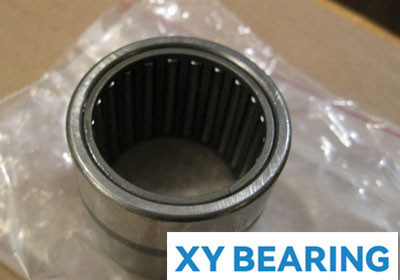

INA NK35/30-TV-XL Needle bearing
Also known as : NK35/30-TV-XL
- Inside Diameter: 35 mm
- Outside Diameter: 45 mm
- Width: 30 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 81 kN
INA NK35/30-TV-XL
INA NK35/30-TV-XL details
| model | NK35/30-TV-XL |
|---|---|
| Fw | 35 mm |
| D | 45 mm |
| C | 30 mm |
| rmin | 0.3 mm |
| Cr | 46000 N |
| C0r | 81000 N |
| Cur | 15000 N, Fatigue limit load, radial |
| Limiting speed | 12900 1/min |
| Reference speed | 7100 1/min |
| Suitable sealing ring | SD35X45X4 G35X45X4 |
| mass | 106 g |
INA NK35/30-TV-XL bearing cross reference
YTL 2526
35 mmx 45 mmx30 mm

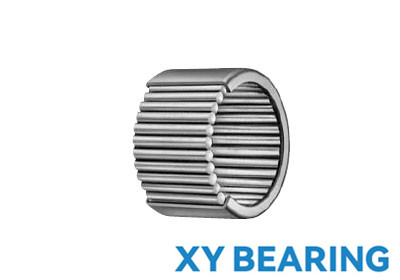

YT 2515
35 mmx 45 mmx30 mm
YT 243216
35 mmx 45 mmx30 mm
YT 2428
35 mmx 45 mmx30 mm
YT 223016
35 mmx 45 mmx30 mm
YT 2116
35 mmx 45 mmx30 mm
YT 2025
35 mmx 45 mmx30 mm
YT 1715
35 mmx 45 mmx30 mm
TAMW 7050
35 mmx 45 mmx30 mm

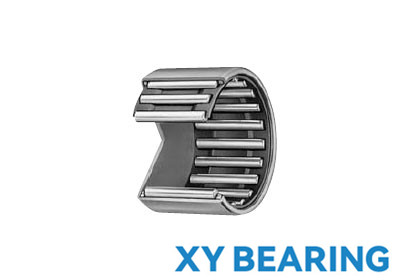

TAM 7040
35 mmx 45 mmx30 mm
TAM 7030
35 mmx 45 mmx30 mm
