IKO BRI102216UU

IKO BRI102216UU Needle bearing

Also known as : BRI102216UU,

Inside Diameter: 15.875 mm
Outside Diameter: 34.925 mm
Width: 25.4 mm
Basic dynamic load rating: 21.6 kN
Basic static load rating: 26.9 kN

IKO BRI102216UU

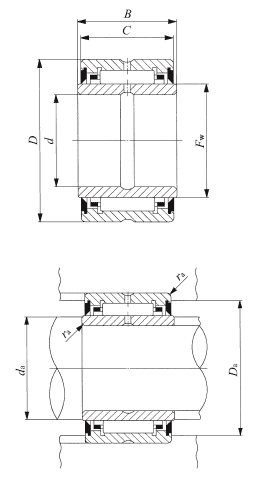

IKO BRI102216UU details

model	BRI102216UU
d	15.875 mm
D	34.925 mm
C	25.400 mm
B	25.650 mm
F_w	22.225 mm
r_{s max}	0.6 mm
d_{a min}	21 mm
d_{a max}	21.2 mm
D_{a max}	29.7 mm
C	21600 N, Basic dynamic load rating
C₀	26900 N, Basic static load rating
Allowable rotational speed	9000 rpm
Assembled inner ring	LRBZ101416B
Mass	113.5 g (approx.)

IKO BRI102216UU bearing cross reference

YTL 2526
15.875 mmx 34.925 mmx25.4 mm

YT 2515
15.875 mmx 34.925 mmx25.4 mm

YT 243216
15.875 mmx 34.925 mmx25.4 mm

YT 2428
15.875 mmx 34.925 mmx25.4 mm

YT 223016
15.875 mmx 34.925 mmx25.4 mm

YT 2116
15.875 mmx 34.925 mmx25.4 mm

YT 2025
15.875 mmx 34.925 mmx25.4 mm

YT 1715
15.875 mmx 34.925 mmx25.4 mm

TAMW 7050
15.875 mmx 34.925 mmx25.4 mm

TAM 7040
15.875 mmx 34.925 mmx25.4 mm

TAM 7030
15.875 mmx 34.925 mmx25.4 mm

TAMW 6550
15.875 mmx 34.925 mmx25.4 mm
