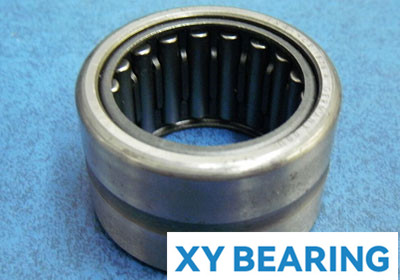

INA NCS1016 Needle bearing
Also known as : NCS1016
- Inside Diameter: 15.875 mm
- Outside Diameter: 28.575 mm
- Width: 25.4 mm
- Basic dynamic load rating: 4.75 kN
- Basic static load rating: 5.2 kN
INA NCS1016
INA NCS1016 details
| Fw | 5/8 inch | |
|---|---|---|
| Fw | 15,875 mm | |
| D | 1,125 inch | |
| D | 28,575 mm | |
| C | 1 inch | |
| C | 25,4 mm | |
| m | 0,15 lbs | Mass |
| m | 68 g | Mass |
| Cr | 4750 lbf | Basic dynamic load rating, radial |
| Cr | 21100 N | Basic dynamic load rating, radial |
| C0r | 5200 lbf | Basic static load rating, radial |
| C0r | 23000 N | Basic static load rating, radial |
| nG | 22400 1/min | Limiting speed |
| nB | 12800 1/min | Reference speed |
INA NCS1016 bearing cross reference
YTL 2526
15.875 mmx 28.575 mmx25.4 mm
YT 2515
15.875 mmx 28.575 mmx25.4 mm
YT 243216
15.875 mmx 28.575 mmx25.4 mm
YT 2428
15.875 mmx 28.575 mmx25.4 mm
YT 223016
15.875 mmx 28.575 mmx25.4 mm
YT 2116
15.875 mmx 28.575 mmx25.4 mm
YT 2025
15.875 mmx 28.575 mmx25.4 mm
YT 1715
15.875 mmx 28.575 mmx25.4 mm
TAMW 7050
15.875 mmx 28.575 mmx25.4 mm
TAM 7040
15.875 mmx 28.575 mmx25.4 mm
TAM 7030
15.875 mmx 28.575 mmx25.4 mm
