INA NAO30X45X17-XL

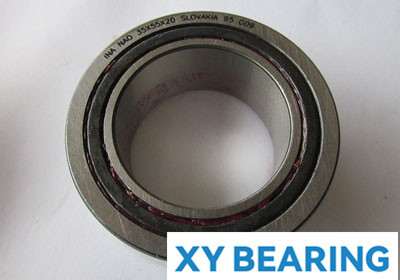

INA NAO30X45X17-XL Needle bearing

Also known as : NAO30X45X17-XL

Inside Diameter: 30 mm
Outside Diameter: 45 mm
Width: 17 mm
Basic dynamic load rating: 23.5 kN
Basic static load rating: 38.5 kN

INA NAO30X45X17-XL

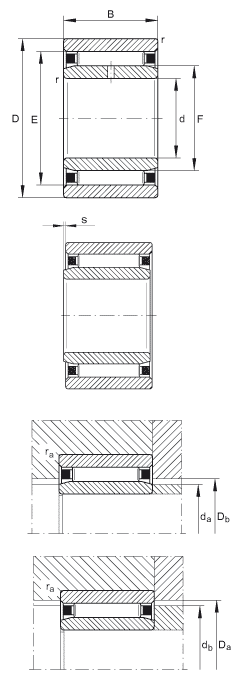

INA NAO30X45X17-XL details

d	30 mm
D	45 mm
B	17 mm
D_a	40,5 mm
D_b	35,6 mm
d_a	34,5 mm
d_b	39,4 mm
E	40 mm
F	35 mm
r_{a max}	0,3 mm
r_min	0,3 mm
s	0,8 mm	Axial displacement
m	102 g	Mass
C_r	23500 N	Basic dynamic load rating, radial
C_0r	38500 N	Basic static load rating, radial
C_ur	6100 N	Fatigue limit load, radial
n_G	13100 1/min	Limiting speed
n_B	7100 1/min	Reference speed

INA NAO30X45X17-XL bearing cross reference

YTL 2526
30 mmx 45 mmx17 mm

YT 2515
30 mmx 45 mmx17 mm

YT 243216
30 mmx 45 mmx17 mm

YT 2428
30 mmx 45 mmx17 mm

YT 223016
30 mmx 45 mmx17 mm

YT 2116
30 mmx 45 mmx17 mm

YT 2025
30 mmx 45 mmx17 mm

YT 1715
30 mmx 45 mmx17 mm

TAMW 7050
30 mmx 45 mmx17 mm

TAM 7040
30 mmx 45 mmx17 mm

TAM 7030
30 mmx 45 mmx17 mm

TAMW 6550
30 mmx 45 mmx17 mm
