IKO RNA6918UU Needle bearing
Also known as : RNA6918UU
- Inside Diameter: 105 mm
- Outside Diameter: 125 mm
- Width: 63 mm
- Basic dynamic load rating: 172 kN
- Basic static load rating: 471 kN
IKO RNA6918UU
IKO RNA6918UU details

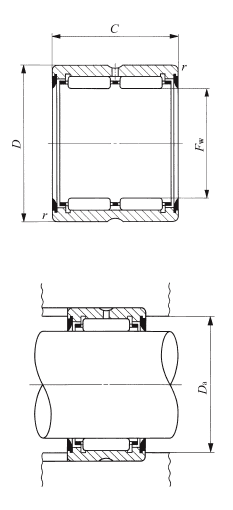

| model | RNA6918UU |
|---|---|
| Fw | 105 mm |
| D | 125 mm |
| C | 63 mm |
| rs min | 1.1 mm |
| Da max | 118.5 mm |
| C | 172000 N, Basic dynamic load rating |
| C0 | 471000 N, Basic static load rating |
| Allowable rotational speed | 1800 rpm |
| Mass | 1360 g (approx.) |
IKO RNA6918UU bearing cross reference
YTL 2526
105 mmx 125 mmx63 mm
YT 2515
105 mmx 125 mmx63 mm
YT 243216
105 mmx 125 mmx63 mm
YT 2428
105 mmx 125 mmx63 mm
YT 223016
105 mmx 125 mmx63 mm
YT 2116
105 mmx 125 mmx63 mm
YT 2025
105 mmx 125 mmx63 mm
YT 1715
105 mmx 125 mmx63 mm
TAMW 7050
105 mmx 125 mmx63 mm
TAM 7040
105 mmx 125 mmx63 mm
TAM 7030
105 mmx 125 mmx63 mm
