IKO RNA6902UU Needle bearing
Also known as : RNA6902UU
- Inside Diameter: 20 mm
- Outside Diameter: 28 mm
- Width: 23 mm
- Basic dynamic load rating: 18.5 kN
- Basic static load rating: 27.1 kN
IKO RNA6902UU

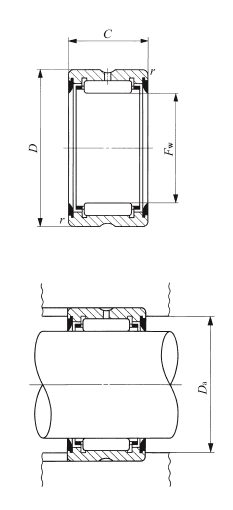

IKO RNA6902UU details
| model | RNA6902UU |
|---|---|
| Fw | 20 mm |
| D | 28 mm |
| C | 23 mm |
| rs min | 0.3 mm |
| Da max | 26 mm |
| C | 18500 N, Basic dynamic load rating |
| C0 | 27100 N, Basic static load rating |
| Allowable rotational speed | 9500 rpm |
| Mass | 37.5 g (approx.) |
IKO RNA6902UU bearing cross reference
YTL 2526
20 mmx 28 mmx23 mm
YT 2515
20 mmx 28 mmx23 mm
YT 243216
20 mmx 28 mmx23 mm
YT 2428
20 mmx 28 mmx23 mm
YT 223016
20 mmx 28 mmx23 mm
YT 2116
20 mmx 28 mmx23 mm
YT 2025
20 mmx 28 mmx23 mm
YT 1715
20 mmx 28 mmx23 mm
TAMW 7050
20 mmx 28 mmx23 mm
TAM 7040
20 mmx 28 mmx23 mm
TAM 7030
20 mmx 28 mmx23 mm
