INA RNAO25X35X17-XL Needle bearing
Also known as : RNAO25X35X17-XL , RNAF253517
- Inside Diameter: 25 mm
- Outside Diameter: 35 mm
- Width: 17 mm
- Basic dynamic load rating: 16.8 kN
- Basic static load rating: 26 kN
INA RNAO25X35X17-XL

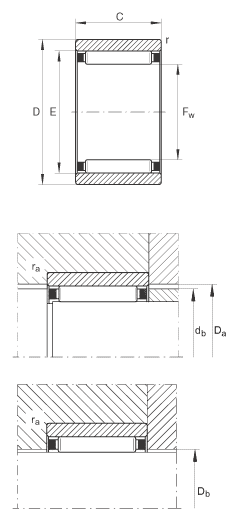

INA RNAO25X35X17-XL details
| Fw | 25 mm | |
|---|---|---|
| D | 35 mm | |
| C | 17 mm | |
| Da | 29,5 mm | |
| Db | 25,6 mm | |
| db | 28,4 mm | |
| E | 29 mm | |
| ra max | 0,3 mm | |
| rmin | 0,3 mm | |
| m | 53 g | Mass |
| Cr | 16800 N | Basic dynamic load rating, radial |
| C0r | 26000 N | Basic static load rating, radial |
| Cur | 4250 N | Fatigue limit load, radial |
| nG | 18100 1/min | Limiting speed |
| nB | 11000 1/min | Reference speed |
INA RNAO25X35X17-XL bearing cross reference
YTL 2526
25 mmx 35 mmx17 mm
YT 2515
25 mmx 35 mmx17 mm
YT 243216
25 mmx 35 mmx17 mm
YT 2428
25 mmx 35 mmx17 mm
YT 223016
25 mmx 35 mmx17 mm
YT 2116
25 mmx 35 mmx17 mm
YT 2025
25 mmx 35 mmx17 mm
YT 1715
25 mmx 35 mmx17 mm
TAMW 7050
25 mmx 35 mmx17 mm
TAM 7040
25 mmx 35 mmx17 mm
TAM 7030
25 mmx 35 mmx17 mm
