IKO NA4908UU Needle bearing
Also known as : NA4908UU , NA4908-2RSR
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 22 mm
- Basic dynamic load rating: 37.2 kN
- Basic static load rating: 58.4 kN
IKO NA4908UU

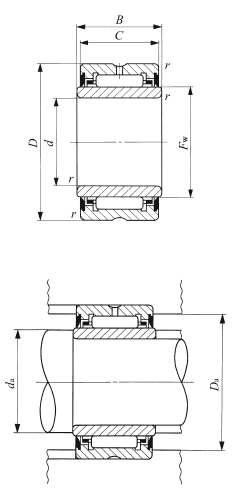

IKO NA4908UU details
| model | NA4908UU |
|---|---|
| d | 40 mm |
| D | 62 mm |
| C | 22 mm |
| B | 23 mm |
| Fw | 48 mm |
| rs min | 0.6 mm |
| da min | 44 mm |
| da max | 47 mm |
| Da max | 58 mm |
| C | 37200 N, Basic dynamic load rating |
| C0 | 58400 N, Basic static load rating |
| Allowable rotational speed | 4000 rpm |
| Assembled inner ring | LRTZ404823 |
| Mass | 245 g (approx.) |
IKO NA4908UU bearing cross reference
YTL 2526
40 mmx 62 mmx22 mm
YT 2515
40 mmx 62 mmx22 mm
YT 243216
40 mmx 62 mmx22 mm
YT 2428
40 mmx 62 mmx22 mm
YT 223016
40 mmx 62 mmx22 mm
YT 2116
40 mmx 62 mmx22 mm
YT 2025
40 mmx 62 mmx22 mm
YT 1715
40 mmx 62 mmx22 mm
TAMW 7050
40 mmx 62 mmx22 mm
TAM 7040
40 mmx 62 mmx22 mm
TAM 7030
40 mmx 62 mmx22 mm
