IKO NA6909 Needle bearing
Also known as : NA6909
- Inside Diameter: 45 mm
- Outside Diameter: 68 mm
- Width: 40 mm
- Basic dynamic load rating: 74.6 kN
- Basic static load rating: 147 kN
IKO NA6909

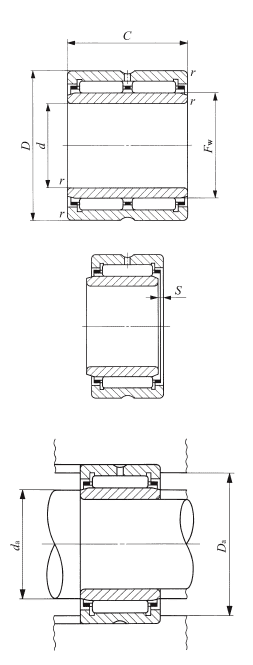

IKO NA6909 details
| model | NA6909 |
|---|---|
| d | 45 mm |
| D | 68 mm |
| C | 40 mm |
| Fw | 52 mm |
| rs min | 0.6 mm |
| S | 0.3 mm |
| da min | 49 mm |
| da max | 51 mm |
| Da max | 64 mm |
| C | 74600 N, Basic dynamic load rating |
| C0 | 147000 N, Basic static load rating |
| Allowable rotational speed | 7500 rpm |
| Assembled inner ring | LRT455240 |
| Mass | 520 g (approx.) |
IKO NA6909 bearing cross reference
YTL 2526
45 mmx 68 mmx40 mm
YT 2515
45 mmx 68 mmx40 mm
YT 243216
45 mmx 68 mmx40 mm
YT 2428
45 mmx 68 mmx40 mm
YT 223016
45 mmx 68 mmx40 mm
YT 2116
45 mmx 68 mmx40 mm
YT 2025
45 mmx 68 mmx40 mm
YT 1715
45 mmx 68 mmx40 mm
TAMW 7050
45 mmx 68 mmx40 mm
TAM 7040
45 mmx 68 mmx40 mm
TAM 7030
45 mmx 68 mmx40 mm
