INA NKI9/16-XL Needle bearing
Also known as : NKI9/16-XL
- Inside Diameter: 9 mm
- Outside Diameter: 19 mm
- Width: 16 mm
- Basic dynamic load rating: 10.1 kN
- Basic static load rating: 11 kN
INA NKI9/16-XL
INA NKI9/16-XL details

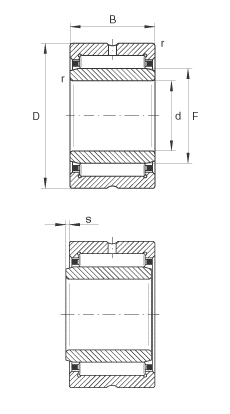

| d | 9 mm | |
|---|---|---|
| D | 19 mm | |
| B | 16 mm | |
| F | 12 mm | |
| rmin | 0,3 mm | |
| s | 2 mm | Axial displacement |
| m | 21,9 g | Mass |
| Cr | 10100 N | Basic dynamic load rating, radial |
| C0r | 11000 N | Basic static load rating, radial |
| Cur | 1920 N | Fatigue limit load, radial |
| nG | 26500 1/min | Limiting speed |
| nB | 19500 1/min | Reference speed |
INA NKI9/16-XL bearing cross reference
YTL 2526
9 mmx 19 mmx16 mm
YT 2515
9 mmx 19 mmx16 mm
YT 243216
9 mmx 19 mmx16 mm
YT 2428
9 mmx 19 mmx16 mm
YT 223016
9 mmx 19 mmx16 mm
YT 2116
9 mmx 19 mmx16 mm
YT 2025
9 mmx 19 mmx16 mm
YT 1715
9 mmx 19 mmx16 mm
TAMW 7050
9 mmx 19 mmx16 mm
TAM 7040
9 mmx 19 mmx16 mm
TAM 7030
9 mmx 19 mmx16 mm
