IKO BR263520UU Needle bearing
Also known as : BR263520UU, NCS2620
- Inside Diameter: 41.275 mm
- Outside Diameter: 55.562 mm
- Width: 31.75 mm
- Basic dynamic load rating: 44.8 kN
- Basic static load rating: 70.9 kN
IKO BR263520UU
IKO BR263520UU details

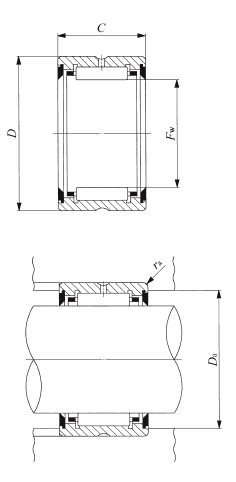

| model | BR263520UU |
|---|---|
| Fw | 41.275 mm |
| D | 55.562 mm |
| C | 31.750 mm |
| rs min | 1.5 mm |
| Da max | 48.3 mm |
| C | 44800 N, Basic dynamic load rating |
| C0 | 70900 N, Basic static load rating |
| Allowable rotational speed | 4500 rpm |
| Mass | 179 g (approx.) |
IKO BR263520UU bearing cross reference
YTL 2526
41.275 mmx 55.562 mmx31.75 mm
YT 2515
41.275 mmx 55.562 mmx31.75 mm
YT 243216
41.275 mmx 55.562 mmx31.75 mm
YT 2428
41.275 mmx 55.562 mmx31.75 mm
YT 223016
41.275 mmx 55.562 mmx31.75 mm
YT 2116
41.275 mmx 55.562 mmx31.75 mm
YT 2025
41.275 mmx 55.562 mmx31.75 mm
YT 1715
41.275 mmx 55.562 mmx31.75 mm
TAMW 7050
41.275 mmx 55.562 mmx31.75 mm
TAM 7040
41.275 mmx 55.562 mmx31.75 mm
TAM 7030
41.275 mmx 55.562 mmx31.75 mm
