INA PNA40/62-XL

INA PNA40/62-XL Needle bearing

Also known as : PNA40/62-XL

Inside Diameter: 40 mm
Outside Diameter: 62 mm
Width: 20 mm
Basic dynamic load rating: 31 kN
Basic static load rating: 53 kN

INA PNA40/62-XL

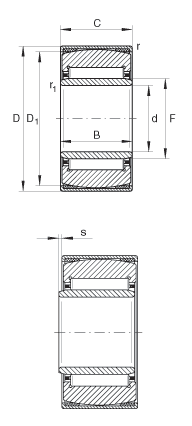

INA PNA40/62-XL details

model	PNA40/62-XL
d	40 mm
D	62 mm
C	20 mm
B	20 mm
D₁	58 mm
F	45 mm
r_{1 min}	0.3 mm
r_min	0.8 mm
s	0.5 mm
C_r	31000 N
C_0r	53000 N
C_ur	9300 N, Fatigue limit load, radial
Limiting speed	10200 1/min
mass	227 g

INA PNA40/62-XL bearing cross reference

YTL 2526
40 mmx 62 mmx20 mm

YT 2515
40 mmx 62 mmx20 mm

YT 243216
40 mmx 62 mmx20 mm

YT 2428
40 mmx 62 mmx20 mm

YT 223016
40 mmx 62 mmx20 mm

YT 2116
40 mmx 62 mmx20 mm

YT 2025
40 mmx 62 mmx20 mm

YT 1715
40 mmx 62 mmx20 mm

TAMW 7050
40 mmx 62 mmx20 mm

TAM 7040
40 mmx 62 mmx20 mm

TAM 7030
40 mmx 62 mmx20 mm

TAMW 6550
40 mmx 62 mmx20 mm
