SKF RNA4913

SKF RNA4913 Needle bearing

Also known as : RNA4913

Inside Diameter: 72 mm
Outside Diameter: 90 mm
Width: 25 mm
Basic dynamic load rating: 61.6 kN
Basic static load rating: 120 kN

SKF RNA4913

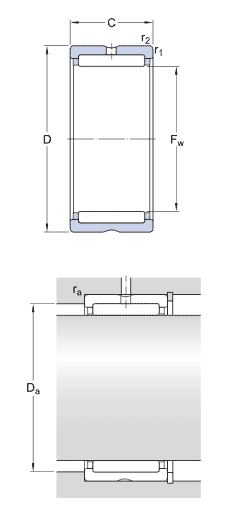

SKF RNA4913 details

number	RNA4913
F_w	72 mm
D	90 mm
C	25 mm
r_{1,2 min.}	1 mm
D_{a max.}	85 mm
r_{a max.}	1 mm
Radial shaft seal	72x90x10 HMS5 RG
Calculation data
C	61.6 kN, Basic dynamic load rating
C₀	120 kN, Basic static load rating
P_u	14.6 kN, Fatigue load limit
Reference speed	5600 r/min
Limiting speed	6300 r/min
Mass	0.31 kg

SKF RNA4913 bearing cross reference

YTL 2526
72 mmx 90 mmx25 mm

YT 2515
72 mmx 90 mmx25 mm

YT 243216
72 mmx 90 mmx25 mm

YT 2428
72 mmx 90 mmx25 mm

YT 223016
72 mmx 90 mmx25 mm

YT 2116
72 mmx 90 mmx25 mm

YT 2025
72 mmx 90 mmx25 mm

YT 1715
72 mmx 90 mmx25 mm

TAMW 7050
72 mmx 90 mmx25 mm

TAM 7040
72 mmx 90 mmx25 mm

TAM 7030
72 mmx 90 mmx25 mm

TAMW 6550
72 mmx 90 mmx25 mm
