SKF RNA6905 Needle bearing
Also known as : RNA6905
- Inside Diameter: 30 mm
- Outside Diameter: 42 mm
- Width: 30 mm
- Basic dynamic load rating: 38 kN
- Basic static load rating: 62 kN
SKF RNA6905

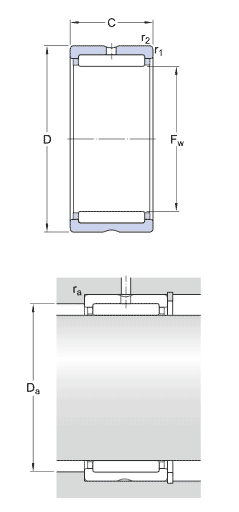

SKF RNA6905 details
| number | RNA6905 | |
|---|---|---|
| Fw | 30 mm | |
| D | 42 mm | |
| C | 30 mm | |
| r1,2 min. | 0.3 mm | |
| Da max. | 40 mm | |
| ra max. | 0.3 mm | |
| Radial shaft seal | 30x42x6 HMS5 RG | |
| Calculation data | ||
| C | 38 kN, Basic dynamic load rating | |
| C0 | 62 kN, Basic static load rating | |
| Pu | 7.65 kN, Fatigue load limit | |
| Reference speed | 13000 r/min | |
| Limiting speed | 15000 r/min | |
| Mass | 0.11 kg | |
SKF RNA6905 bearing cross reference
YTL 2526
30 mmx 42 mmx30 mm
YT 2515
30 mmx 42 mmx30 mm
YT 243216
30 mmx 42 mmx30 mm
YT 2428
30 mmx 42 mmx30 mm
YT 223016
30 mmx 42 mmx30 mm
YT 2116
30 mmx 42 mmx30 mm
YT 2025
30 mmx 42 mmx30 mm
YT 1715
30 mmx 42 mmx30 mm
TAMW 7050
30 mmx 42 mmx30 mm
TAM 7040
30 mmx 42 mmx30 mm
TAM 7030
30 mmx 42 mmx30 mm
