SKF RNA6913

SKF RNA6913 Needle bearing

Also known as : RNA6913

Inside Diameter: 72 mm
Outside Diameter: 90 mm
Width: 45 mm
Basic dynamic load rating: 95.2 kN
Basic static load rating: 212 kN

SKF RNA6913

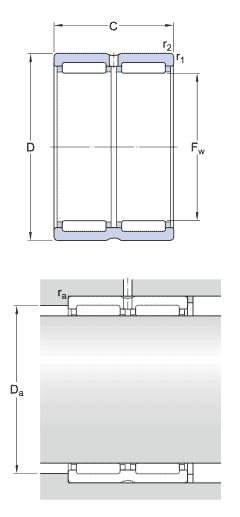

SKF RNA6913 details

number	RNA6913
F_w	72 mm
D	90 mm
C	45 mm
r_{1,2 min.}	1 mm
D_{a max.}	85 mm
r_{a max.}	1 mm
Radial shaft seal	72x90x10 HMS5 RG
Calculation data
C	95.2 kN, Basic dynamic load rating
C₀	212 kN, Basic static load rating
P_u	26 kN, Fatigue load limit
Reference speed	5600 r/min
Limiting speed	6300 r/min
Mass	0.58 kg

SKF RNA6913 bearing cross reference

YTL 2526
72 mmx 90 mmx45 mm

YT 2515
72 mmx 90 mmx45 mm

YT 243216
72 mmx 90 mmx45 mm

YT 2428
72 mmx 90 mmx45 mm

YT 223016
72 mmx 90 mmx45 mm

YT 2116
72 mmx 90 mmx45 mm

YT 2025
72 mmx 90 mmx45 mm

YT 1715
72 mmx 90 mmx45 mm

TAMW 7050
72 mmx 90 mmx45 mm

TAM 7040
72 mmx 90 mmx45 mm

TAM 7030
72 mmx 90 mmx45 mm

TAMW 6550
72 mmx 90 mmx45 mm
