SKF NKI35/30

SKF NKI35/30 Needle bearing

Also known as : NKI35/30

Inside Diameter: 35 mm
Outside Diameter: 50 mm
Width: 30 mm
Basic dynamic load rating: 38 kN
Basic static load rating: 83 kN

SKF NKI35/30

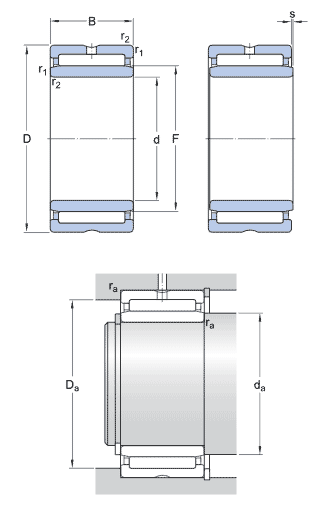

SKF NKI35/30 details

number	NKI35/30
d	35 mm
D	50 mm
B	30 mm
F	40 mm
r_{1,2 min.}	0.3 mm
s	1 mm
d_{a min.}	37 mm
D_{a max.}	48 mm
r_{a max.}	0.3 mm
Calculation data
C	38 kN, Basic dynamic load rating
C₀	83 kN, Basic static load rating
P_u	10.4 kN, Fatigue load limit
Reference speed	10000 r/min
Limiting speed	11000 r/min
Mass	0.19 kg

SKF NKI35/30 bearing cross reference

YTL 2526
35 mmx 50 mmx30 mm

YT 2515
35 mmx 50 mmx30 mm

YT 243216
35 mmx 50 mmx30 mm

YT 2428
35 mmx 50 mmx30 mm

YT 223016
35 mmx 50 mmx30 mm

YT 2116
35 mmx 50 mmx30 mm

YT 2025
35 mmx 50 mmx30 mm

YT 1715
35 mmx 50 mmx30 mm

TAMW 7050
35 mmx 50 mmx30 mm

TAM 7040
35 mmx 50 mmx30 mm

TAM 7030
35 mmx 50 mmx30 mm

TAMW 6550
35 mmx 50 mmx30 mm
