SKF NA6910

SKF NA6910 Needle bearing

Also known as : NA6910

Inside Diameter: 50 mm
Outside Diameter: 72 mm
Width: 40 mm
Basic dynamic load rating: 73.7 kN
Basic static load rating: 150 kN

SKF NA6910

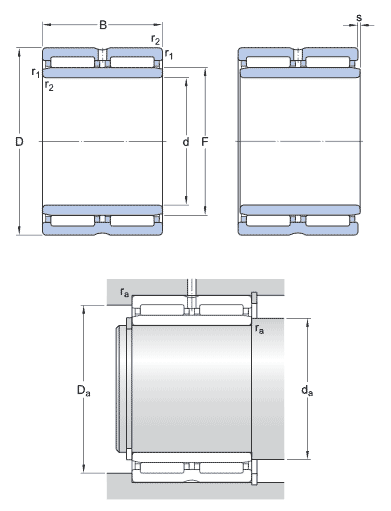

SKF NA6910 details

number	NA6910
d	50 mm
D	72 mm
B	40 mm
F	58 mm
r_{1,2 min.}	0.6 mm
s	0.5 mm
d_{a min.}	54 mm
D_{a max.}	68 mm
r_{a max.}	0.6 mm
Calculation data
C	73.7 kN, Basic dynamic load rating
C₀	150 kN, Basic static load rating
P_u	18.6 kN, Fatigue load limit
Reference speed	7000 r/min
Limiting speed	8000 r/min
Mass	0.52 kg

SKF NA6910 bearing cross reference

YTL 2526
50 mmx 72 mmx40 mm

YT 2515
50 mmx 72 mmx40 mm

YT 243216
50 mmx 72 mmx40 mm

YT 2428
50 mmx 72 mmx40 mm

YT 223016
50 mmx 72 mmx40 mm

YT 2116
50 mmx 72 mmx40 mm

YT 2025
50 mmx 72 mmx40 mm

YT 1715
50 mmx 72 mmx40 mm

TAMW 7050
50 mmx 72 mmx40 mm

TAM 7040
50 mmx 72 mmx40 mm

TAM 7030
50 mmx 72 mmx40 mm

TAMW 6550
50 mmx 72 mmx40 mm
