SKF NA6913

SKF NA6913 Needle bearing

Also known as : NA6913

Inside Diameter: 65 mm
Outside Diameter: 90 mm
Width: 45 mm
Basic dynamic load rating: 95.2 kN
Basic static load rating: 212 kN

SKF NA6913

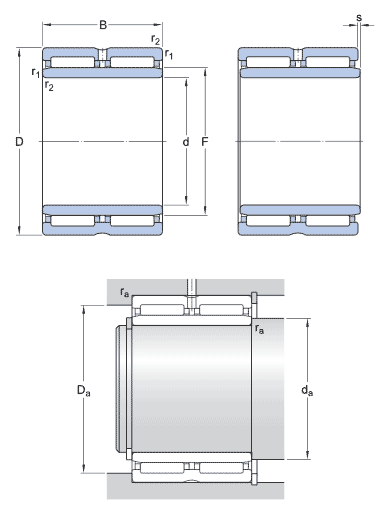

SKF NA6913 details

number	NA6913
d	65 mm
D	90 mm
B	45 mm
F	72 mm
r_{1,2 min.}	1 mm
s	1.5 mm
d_{a min.}	70 mm
D_{a max.}	85 mm
r_{a max.}	1 mm
Calculation data
C	95.2 kN, Basic dynamic load rating
C₀	212 kN, Basic static load rating
P_u	26 kN, Fatigue load limit
Reference speed	5600 r/min
Limiting speed	6300 r/min
Mass	0.83 kg

SKF NA6913 bearing cross reference

YTL 2526
65 mmx 90 mmx45 mm

YT 2515
65 mmx 90 mmx45 mm

YT 243216
65 mmx 90 mmx45 mm

YT 2428
65 mmx 90 mmx45 mm

YT 223016
65 mmx 90 mmx45 mm

YT 2116
65 mmx 90 mmx45 mm

YT 2025
65 mmx 90 mmx45 mm

YT 1715
65 mmx 90 mmx45 mm

TAMW 7050
65 mmx 90 mmx45 mm

TAM 7040
65 mmx 90 mmx45 mm

TAM 7030
65 mmx 90 mmx45 mm

TAMW 6550
65 mmx 90 mmx45 mm
