SKF RNA4907.2RS

SKF RNA4907.2RS Needle bearing

Also known as : RNA4907.2RS

Inside Diameter: 42 mm
Outside Diameter: 55 mm
Width: 20 mm
Basic dynamic load rating: 27 kN
Basic static load rating: 43 kN

SKF RNA4907.2RS

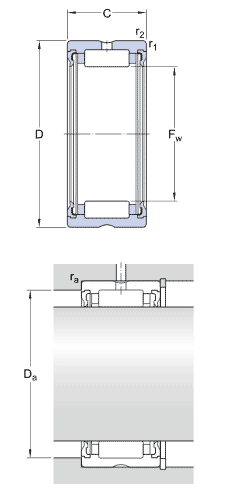

SKF RNA4907.2RS details

number	RNA4907.2RS
F_w	42 mm
D	55 mm
C	20 mm
r_{1,2 min.}	0.6 mm
D_{a max.}	51 mm
r_{a max.}	0.6 mm
Calculation data
C	27 kN, Basic dynamic load rating
C₀	43 kN, Basic static load rating
P_u	5.3 kN, Fatigue load limit
Limiting speed	4800 r/min
Mass	0.11 kg

SKF RNA4907.2RS bearing cross reference

YTL 2526
42 mmx 55 mmx20 mm

YT 2515
42 mmx 55 mmx20 mm

YT 243216
42 mmx 55 mmx20 mm

YT 2428
42 mmx 55 mmx20 mm

YT 223016
42 mmx 55 mmx20 mm

YT 2116
42 mmx 55 mmx20 mm

YT 2025
42 mmx 55 mmx20 mm

YT 1715
42 mmx 55 mmx20 mm

TAMW 7050
42 mmx 55 mmx20 mm

TAM 7040
42 mmx 55 mmx20 mm

TAM 7030
42 mmx 55 mmx20 mm

TAMW 6550
42 mmx 55 mmx20 mm
