SKF NA4910.2RS

SKF NA4910.2RS Needle bearing

Also known as : NA4910.2RS

Inside Diameter: 50 mm
Outside Diameter: 72 mm
Width: 23 mm
Basic dynamic load rating: 40.2 kN
Basic static load rating: 69.5 kN

SKF NA4910.2RS

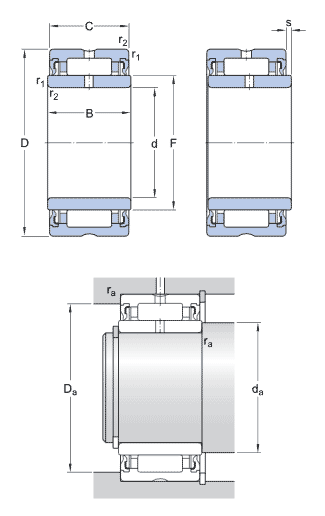

SKF NA4910.2RS details

number	NA4910.2RS
d	50 mm
D	72 mm
B	23 mm
C	22 mm
F	58 mm
r_{1,2 min.}	0.6 mm
s	0.5 mm
d_{a min.}	54 mm
D_{a max.}	68 mm
r_{a max.}	0.6 mm
Calculation data
C	40.2 kN, Basic dynamic load rating
C₀	69.5 kN, Basic static load rating
P_u	8.5 kN, Fatigue load limit
Limiting speed	3400 r/min
Mass	0.29 kg

SKF NA4910.2RS bearing cross reference

YTL 2526
50 mmx 72 mmx23 mm

YT 2515
50 mmx 72 mmx23 mm

YT 243216
50 mmx 72 mmx23 mm

YT 2428
50 mmx 72 mmx23 mm

YT 223016
50 mmx 72 mmx23 mm

YT 2116
50 mmx 72 mmx23 mm

YT 2025
50 mmx 72 mmx23 mm

YT 1715
50 mmx 72 mmx23 mm

TAMW 7050
50 mmx 72 mmx23 mm

TAM 7040
50 mmx 72 mmx23 mm

TAM 7030
50 mmx 72 mmx23 mm

TAMW 6550
50 mmx 72 mmx23 mm
