SKF NA4907.2RS

SKF NA4907.2RS Needle bearing

Also known as : NA4907.2RS

Inside Diameter: 35 mm
Outside Diameter: 55 mm
Width: 21 mm
Basic dynamic load rating: 27 kN
Basic static load rating: 43 kN

SKF NA4907.2RS

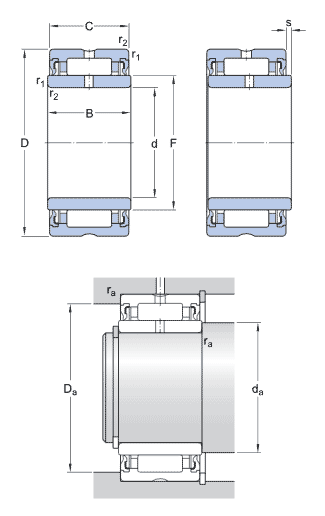

SKF NA4907.2RS details

number	NA4907.2RS
d	35 mm
D	55 mm
B	21 mm
C	20 mm
F	42 mm
r_{1,2 min.}	0.6 mm
s	0.5 mm
d_{a min.}	39 mm
D_{a max.}	51 mm
r_{a max.}	0.6 mm
Calculation data
C	27 kN, Basic dynamic load rating
C₀	43 kN, Basic static load rating
P_u	5.3 kN, Fatigue load limit
Limiting speed	4800 r/min
Mass	0.17 kg

SKF NA4907.2RS bearing cross reference

YTL 2526
35 mmx 55 mmx21 mm

YT 2515
35 mmx 55 mmx21 mm

YT 243216
35 mmx 55 mmx21 mm

YT 2428
35 mmx 55 mmx21 mm

YT 223016
35 mmx 55 mmx21 mm

YT 2116
35 mmx 55 mmx21 mm

YT 2025
35 mmx 55 mmx21 mm

YT 1715
35 mmx 55 mmx21 mm

TAMW 7050
35 mmx 55 mmx21 mm

TAM 7040
35 mmx 55 mmx21 mm

TAM 7030
35 mmx 55 mmx21 mm

TAMW 6550
35 mmx 55 mmx21 mm
