INA NKIB5902-XL Needle bearing
Also known as : NKIB5902-XL
- Inside Diameter: 15 mm
- Outside Diameter: 28 mm
- Width: 20 mm
- Basic dynamic load rating: 2.9 kN
- Basic static load rating: 4.2 kN
INA NKIB5902-XL
INA NKIB5902-XL details

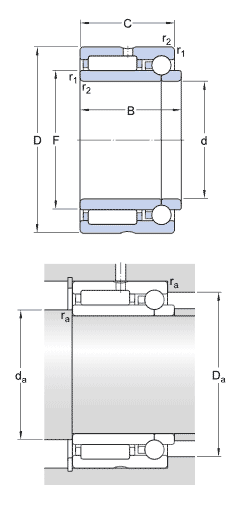

| Number | NKIB5902-XL | |
|---|---|---|
| Type |
Needle roller bearings Needle roller/angular contact ball bearings NKIA |
|
| d | 15 mm | |
| D | 28 mm | |
| B | 20 mm | |
| C | 18 mm | |
| F | 20 mm | |
| rmin | 0,3 mm | |
| m | 52 g | Mass |
| Cr | 12000 N | Basic dynamic load rating, radial |
| C0r | 13600 N | Basic static load rating, radial |
| Ca | 2900 N | Basic dynamic load rating, axial |
| C0a | 4200 N | Basic static load rating, axial |
| Cur | 2430 N | Fatigue limit load, radial |
| Cua | 186 N | Fatigue limit load, axial |
| nG | 21600 1/min | Limiting speed |
| nB | 17000 1/min | Reference speed |
INA NKIB5902-XL bearing cross reference
YTL 2526
15 mmx 28 mmx20 mm
YT 2515
15 mmx 28 mmx20 mm
YT 243216
15 mmx 28 mmx20 mm
YT 2428
15 mmx 28 mmx20 mm
YT 223016
15 mmx 28 mmx20 mm
YT 2116
15 mmx 28 mmx20 mm
YT 2025
15 mmx 28 mmx20 mm
YT 1715
15 mmx 28 mmx20 mm
TAMW 7050
15 mmx 28 mmx20 mm
TAM 7040
15 mmx 28 mmx20 mm
TAM 7030
15 mmx 28 mmx20 mm
