INA NA4911-XL Needle bearing
Also known as : NA4911-XL
- Inside Diameter: 55 mm
- Outside Diameter: 80 mm
- Width: 25 mm
- Basic dynamic load rating: 65 kN
- Basic static load rating: 100 kN
INA NA4911-XL

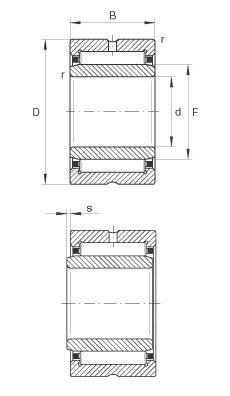

INA NA4911-XL details
| d | 55 mm | |
|---|---|---|
| D | 80 mm | |
| B | 25 mm | |
| F | 63 mm | |
| rmin | 1 mm | |
| s | 1,5 mm | Axial displacement |
| m | 393 g | Mass |
| Cr | 65000 N | Basic dynamic load rating, radial |
| C0r | 100000 N | Basic static load rating, radial |
| Cur | 17300 N | Fatigue limit load, radial |
| nG | 7200 1/min | Limiting speed |
| nB | 4000 1/min | Reference speed |
INA NA4911-XL bearing cross reference
YTL 2526
55 mmx 80 mmx25 mm
YT 2515
55 mmx 80 mmx25 mm
YT 243216
55 mmx 80 mmx25 mm
YT 2428
55 mmx 80 mmx25 mm
YT 223016
55 mmx 80 mmx25 mm
YT 2116
55 mmx 80 mmx25 mm
YT 2025
55 mmx 80 mmx25 mm
YT 1715
55 mmx 80 mmx25 mm
TAMW 7050
55 mmx 80 mmx25 mm
TAM 7040
55 mmx 80 mmx25 mm
TAM 7030
55 mmx 80 mmx25 mm
