INA NA6909-ZW-XL Needle bearing
Also known as : NA6909
- Inside Diameter: 45 mm
- Outside Diameter: 68 mm
- Width: 40 mm
- Basic dynamic load rating: 79 kN
- Basic static load rating: 127 kN
INA NA6909-ZW-XL
INA NA6909-ZW-XL details

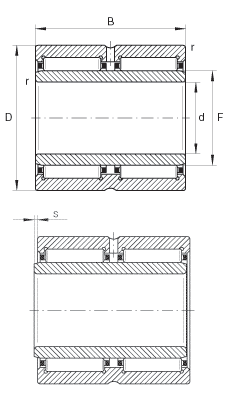

| d | 45 mm | |
|---|---|---|
| D | 68 mm | |
| B | 40 mm | |
| F | 52 mm | |
| rmin | 0,6 mm | |
| s | 0,5 mm | Axial displacement |
| m | 495 g | Mass |
| Cr | 79000 N | Basic dynamic load rating, radial |
| C0r | 127000 N | Basic static load rating, radial |
| Cur | 21400 N | Fatigue limit load, radial |
| nG | 8600 1/min | Limiting speed |
| nB | 4750 1/min | Reference speed |
| Double row |
INA NA6909-ZW-XL bearing cross reference
YTL 2526
45 mmx 68 mmx40 mm
YT 2515
45 mmx 68 mmx40 mm
YT 243216
45 mmx 68 mmx40 mm
YT 2428
45 mmx 68 mmx40 mm
YT 223016
45 mmx 68 mmx40 mm
YT 2116
45 mmx 68 mmx40 mm
YT 2025
45 mmx 68 mmx40 mm
YT 1715
45 mmx 68 mmx40 mm
TAMW 7050
45 mmx 68 mmx40 mm
TAM 7040
45 mmx 68 mmx40 mm
TAM 7030
45 mmx 68 mmx40 mm
