INA NA6908-ZW-XL Needle bearing
Also known as : NA6908-ZW
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 40 mm
- Basic dynamic load rating: 74 kN
- Basic static load rating: 116 kN
INA NA6908-ZW-XL

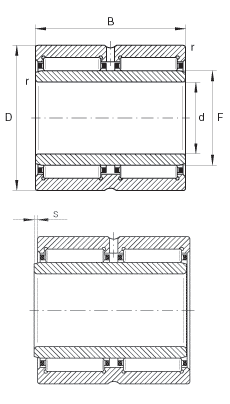

INA NA6908-ZW-XL details
| d | 40 mm | |
|---|---|---|
| D | 62 mm | |
| B | 40 mm | |
| F | 48 mm | |
| rmin | 0,6 mm | |
| s | 0,5 mm | Axial displacement |
| m | 430 g | Mass |
| Cr | 74000 N | Basic dynamic load rating, radial |
| C0r | 116000 N | Basic static load rating, radial |
| Cur | 19400 N | Fatigue limit load, radial |
| nG | 9200 1/min | Limiting speed |
| nB | 5100 1/min | Reference speed |
| Double row |
INA NA6908-ZW-XL bearing cross reference
YTL 2526
40 mmx 62 mmx40 mm
YT 2515
40 mmx 62 mmx40 mm
YT 243216
40 mmx 62 mmx40 mm
YT 2428
40 mmx 62 mmx40 mm
YT 223016
40 mmx 62 mmx40 mm
YT 2116
40 mmx 62 mmx40 mm
YT 2025
40 mmx 62 mmx40 mm
YT 1715
40 mmx 62 mmx40 mm
TAMW 7050
40 mmx 62 mmx40 mm
TAM 7040
40 mmx 62 mmx40 mm
TAM 7030
40 mmx 62 mmx40 mm
