IKO RNA498 Needle bearing
Also known as : RNA498
- Inside Diameter: 10 mm
- Outside Diameter: 19 mm
- Width: 11 mm
- Basic dynamic load rating: 6.18 kN
- Basic static load rating: 5.03 kN
IKO RNA498

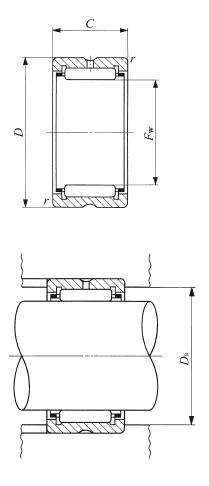

IKO RNA498 details
| model | RNA498 |
|---|---|
| Fw | 10 mm |
| D | 19 mm |
| C | 11 mm |
| rs min | 0.2 mm |
| Da max | 17.4 mm |
| C | 6180 N, Basic dynamic load rating |
| C0 | 5030 N, Basic static load rating |
| Allowable rotational speed | 40000 rpm |
| Mass | 12.6 g (approx.) |
IKO RNA498 bearing cross reference
YTL 2526
10 mmx 19 mmx11 mm
YT 2515
10 mmx 19 mmx11 mm
YT 243216
10 mmx 19 mmx11 mm
YT 2428
10 mmx 19 mmx11 mm
YT 223016
10 mmx 19 mmx11 mm
YT 2116
10 mmx 19 mmx11 mm
YT 2025
10 mmx 19 mmx11 mm
YT 1715
10 mmx 19 mmx11 mm
TAMW 7050
10 mmx 19 mmx11 mm
TAM 7040
10 mmx 19 mmx11 mm
TAM 7030
10 mmx 19 mmx11 mm
