SKF 16056 Deep groove ball bearings
Also known as : 16056
- Inside Diameter: 280 mm
- Outside Diameter: 420 mm
- Width: 44 mm
- Basic dynamic load rating: 242 kN
- Basic static load rating: 335 kN
SKF 16056

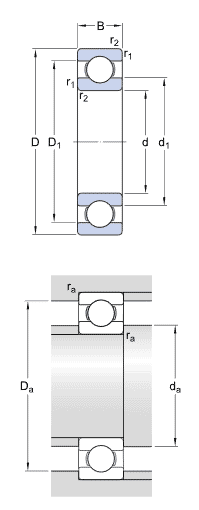

SKF 16056 details
| model | 16056 |
|---|---|
| d | 280 mm |
| D | 420 mm |
| B | 44 mm |
| d1 | 327.2 mm |
| r1,2 min. | 3 mm |
| da min | 293 mm |
| Da max | 407 mm |
| ra max | 2.5 mm |
| C | 242 kN, Basic dynamic load rating |
| C0 | 335 kN, Basic static load rating |
| Pu | 7.5 kN, Fatigue load limit |
| Reference speed | 3000 r/min |
| Limiting speed | 1900 r/min |
| kr | 0.02, Calculation factor |
| f0 | 16.5, Calculation factor |
| Mass | 19 kg |
