NTN 6206LLU Deep groove ball bearings
Also known as : 6206DDU
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 16 mm
- Basic dynamic load rating: 19.5 kN
- Basic static load rating: 11.3 kN
NTN 6206LLU
NTN 6206LLU details
| Part Number | 6206LLU |
|---|---|
| Brand | NTN |
| Mass | 0.199 kg |

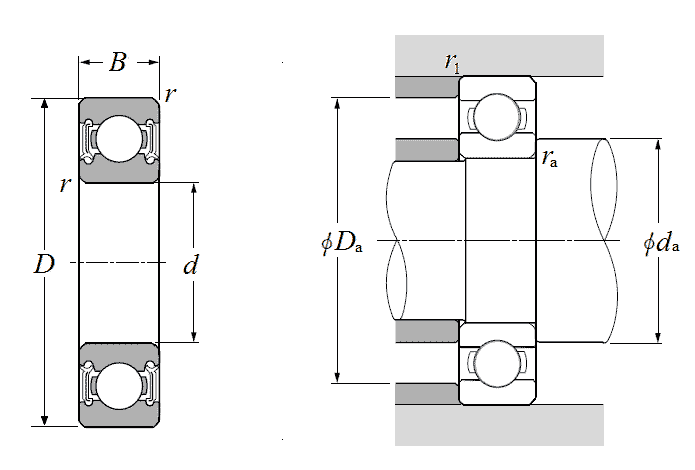

| Boundary dimensions (mm) | |
| Inner dia. (d) | 30 |
| Outer dia. (D) | 62 |
| Width (B) | 16 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 19.5 |
| Static (Cor) | 11.3 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 1980 |
| Static (Cor) | 1150 |
| Limiting speed (min-1) | |
| Grease | 7300 |
| Abutment and fillet dimensions (mm) | |
| da min | 35 |
| da max | 39 |
| Da max | 57 |
| ras max | 1 |
XinYouYa have NTN 6206LLU bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 6206LLU bearing cross reference
302K
30 mmx 62 mmx 16 mm
301K
30 mmx 62 mmx 16 mm
62207-2RS-C3
30 mmx 62 mmx 16 mm
62306-2RS-C3
30 mmx 62 mmx 16 mm
63005-2RS-C3
30 mmx 62 mmx 16 mm
62205-2RS-C3
30 mmx 62 mmx 16 mm
62304-2RS-C3
30 mmx 62 mmx 16 mm
62204-2RS-C3
30 mmx 62 mmx 16 mm
63003-2RS-C3
30 mmx 62 mmx 16 mm
62303-2RS-C3
30 mmx 62 mmx 16 mm
63002-2RS-C3
30 mmx 62 mmx 16 mm
