FAG 6010-2Z Deep groove ball bearings
Also known as : 6010ZZ
- Inside Diameter: 50 mm
- Outside Diameter: 80 mm
- Width: 16 mm
- Basic dynamic load rating: 22000 kN
- Basic static load rating: 15800 kN
FAG 6010-2Z
FAG 6010-2Z details
| Part Number | 6010-2Z |
|---|---|
| Brand | FAG |
| Catagory | Deep groove ball bearing 60..-2Z, single row, shields, steel sheet metal cage |
| d | 50 mm, Bore diameter |
| D | 80 mm, Outside diameter |
| B | 16 mm, Width |
| Cr | 22000 N, Basic dynamic load rating, radial |
| C0r | 15800 N, Basic static load rating, radial |
| Cur | 800 N, Fatigue load limit, radial |
| Limiting speed | 10400 1/min |
| Reference speed | 8900 1/min |
| Weight | 0.262 kg |

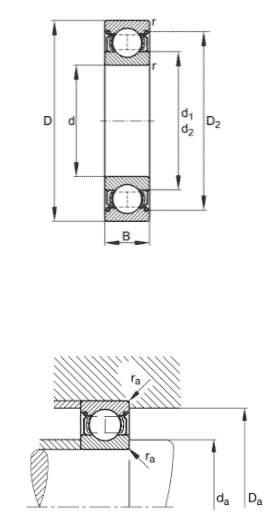

| Other Dimensions | |
| rmin | 1 mm, Minimum chamfer dimension |
| D2 | 72.9 mm, Caliber diameter outer ring |
| Mounting dimensions | |
| da min | 54.6 mm, Minimum diameter shaft shoulder |
| Da max | 75.4 mm, Maximum diameter of housing shoulder |
| ra max | 1 mm, Maximum diameter of housing shoulder |
| Calculation factors | |
| f0 | 15.6, Calculation factor |
