FAG 6010-2RSR

FAG 6010-2RSR Deep groove ball bearings

Also known as : 6010-2RSR

Inside Diameter: 50 mm
Outside Diameter: 80 mm
Width: 16 mm
Basic dynamic load rating: 22 kN
Basic static load rating: 15.8 kN

FAG 6010-2RSR

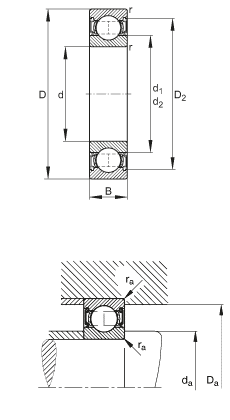

FAG 6010-2RSR details

d	50 mm
D	80 mm
B	16 mm
D₂	72,9 mm
D_{a max}	75,4 mm
d₁	59,8 mm
d_{a min}	54,6 mm
r_{a max}	1 mm
r_min	1 mm
m	0,283 kg	Mass
C_r	22000 N	Basic dynamic load rating, radial
C_0r	15800 N	Basic static load rating, radial
C_ur	770 N	Fatigue limit load, radial
n_G	4450 1/min	Limiting speed
f₀	15,6	Calculation factor

FAG 6010-2RSR bearing cross reference

302K
50 mmx 80 mmx 16 mm

301K
50 mmx 80 mmx 16 mm

62207-2RS-C3
50 mmx 80 mmx 16 mm

62306-2RS-C3
50 mmx 80 mmx 16 mm

63005-2RS-C3
50 mmx 80 mmx 16 mm

62205-2RS-C3
50 mmx 80 mmx 16 mm

62304-2RS-C3
50 mmx 80 mmx 16 mm

62204-2RS-C3
50 mmx 80 mmx 16 mm

63003-2RS-C3
50 mmx 80 mmx 16 mm

62303-2RS-C3
50 mmx 80 mmx 16 mm

63002-2RS-C3
50 mmx 80 mmx 16 mm

62302-2RS-C3
50 mmx 80 mmx 16 mm
