NSK 6305ZZ Deep groove ball bearings
Also known as : 6305ZZ, 6305-2Z
- Inside Diameter: 25 mm
- Outside Diameter: 62 mm
- Width: 17 mm
- Basic dynamic load rating: 20.6 kN
- Basic static load rating: 11.2 kN
NSK 6305ZZ

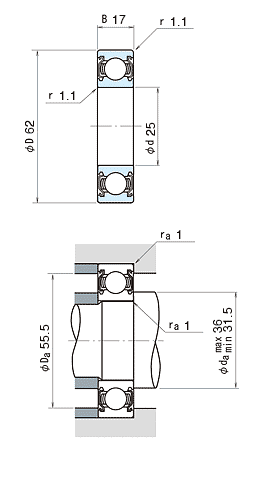

NSK 6305ZZ details
| model | 6305ZZ |
|---|---|
| d | 25 mm |
| D | 62 mm |
| B | 17 mm |
| rmin. | 1.1 mm |
| Cr |
20600 N 2100 kgf |
| C0r |
11200 N 1150 kgf |
| Limiting speeds | 11000 min-1 (Grease) |
| f0 | 13.2 (Factor) |
| da min | 31.5 mm |
| da max | 36 mm |
| Da | 55.5 mm |
| ra | 1 mm |
| Mass | 0.235 kg (approx.) |
NSK 6305ZZ bearing cross reference
302K
25 mmx 62 mmx 17 mm
301K
25 mmx 62 mmx 17 mm
62207-2RS-C3
25 mmx 62 mmx 17 mm
62306-2RS-C3
25 mmx 62 mmx 17 mm
63005-2RS-C3
25 mmx 62 mmx 17 mm
62205-2RS-C3
25 mmx 62 mmx 17 mm
62304-2RS-C3
25 mmx 62 mmx 17 mm
62204-2RS-C3
25 mmx 62 mmx 17 mm
63003-2RS-C3
25 mmx 62 mmx 17 mm
62303-2RS-C3
25 mmx 62 mmx 17 mm
63002-2RS-C3
25 mmx 62 mmx 17 mm
