NSK 6209DDU Deep groove ball bearings
Also known as : 6209-2RSR, 6209-2rs1
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 19 mm
- Basic dynamic load rating: 31.5 kN
- Basic static load rating: 20.4 kN
NSK 6209DDU

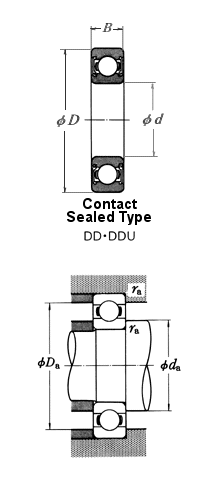

NSK 6209DDU details
| model | 6209DDU |
|---|---|
| d | 45 mm |
| D | 85 mm |
| B | 19 mm |
| rmin. | 1.1 mm |
| Cr |
31500 N 3200 kgf |
| C0r |
20400 N 2080 kgf |
| Limiting speeds | 5300 min-1 (Grease) |
| f0 | 14.4 (Factor) |
| da min | 51.5 mm |
| da max | 55.5 mm |
| Da | 78.5 mm |
| ra | 1 mm |
| Mass | 0.420 kg (approx.) |
NSK 6209DDU bearing cross reference
302K
45 mmx 85 mmx 19 mm
301K
45 mmx 85 mmx 19 mm
62207-2RS-C3
45 mmx 85 mmx 19 mm
62306-2RS-C3
45 mmx 85 mmx 19 mm
63005-2RS-C3
45 mmx 85 mmx 19 mm
62205-2RS-C3
45 mmx 85 mmx 19 mm
62304-2RS-C3
45 mmx 85 mmx 19 mm
62204-2RS-C3
45 mmx 85 mmx 19 mm
63003-2RS-C3
45 mmx 85 mmx 19 mm
62303-2RS-C3
45 mmx 85 mmx 19 mm
63002-2RS-C3
45 mmx 85 mmx 19 mm
